Electric
furnace
I
find it occasionally necessary to heat treat small metal
or ceramic parts in an environment where the temperature
can be quickly ramped to a desired value and instruments
can be easily connected to the part being treated. I have
a large muffle furnace that I use for firing/heat treating
things, but it is expensive to run and hard to get instrumented.
I was curious what could be done with the odds and ends
kicking around the lab; these are the results.
The
heart of my small furnace is a vintage electric toaster
element. ( Eagle #335 Fit's All toaster element, circa 1956
) I bought a pair of these from a junk dealer on the old
Canal St in Manhattan, and I'd be surprised if I paid more
than a dollar or two for them. Each element can run separately
at 110V RMS at about 5A RMS, for about 550 watts of power.
The design is nichrome ribbon wrapped around mica sheets.
They look well built and rugged; your mileage may vary depending
on the toaster you scrounge to build your furnace.
The
body of the furnace is firebrick, I picked up a few from
a local beige box hardware store that shall remain nameless.
I tried several configurations, and found that the flat
"pizza oven" shape gave the best performance in
terms of peak temperature. There is a reason ovens look
like that (grin). The size of the furnace cavity is 4.5
inch x 4.5 inch x 1 inch.
The
controller is an old autotransformer; flip the switch and
dial in the voltage to get the element as hot as is needed.
The brick in the bottom left part of the picture is the
furnace roof. An additional piece of mica sheet is shown
which can be used to cover the electrically active heating
element while the furnace is in operation.

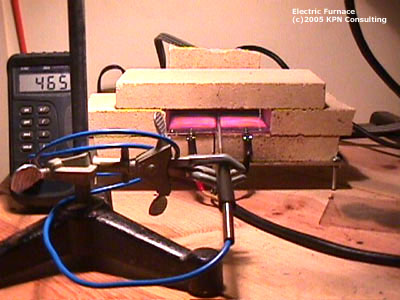

In
the picture below the mica sheet has been removed and a
thermocouple probe is used to probe the furnace temperature.
The furnace rests on a steel plate with one inch legs, these
are sufficient to allow operation without damaging the tabletop.
The
following temperatures were measured at the indicated autotransformer
settings. Note that full scale on the autotransformer is
150V RMS, so a scale reading of 80% is actually 120V.
Autotransformer Setting
|
Temperature in Celcius
|
30%
|
110
|
40%
|
205
|
50%
|
320
|
60%
|
410
|
70%
|
525
|
80%
|
605
|
Measurements
were taken in the center of the furnace cavity with the
mica insulator covering the element. Using the thin piece
of mica reduced the temperature by about 4 percent.
The
temperature variation from the center of the furnace to
a point one half the distance to the wall was about five
percent. Operating the furnace with the mouth open as shown
makes the front somewhat cooler, but it is easier to get
probes and instruments in and out. The time constant of
the furnace on cooling is about 15 minutes.
To
date I've run the furnace up to 630C without problem, 800C
seems within reach with this autotransformer. I could use
both heater elements for double the power but I prefer having
a spare in case of failure.
Total
cost of the furnace, minus the autotransformer, is about
10 bucks. Total running cost is about 10 cents an hour.
